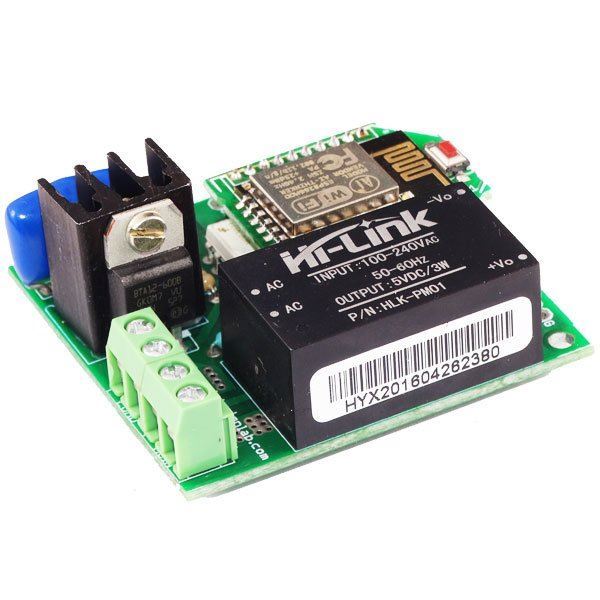

Programmable Wifi ESP8266 AC Dimmer 110V-220V AC For Android and Android Developer SDK Available.

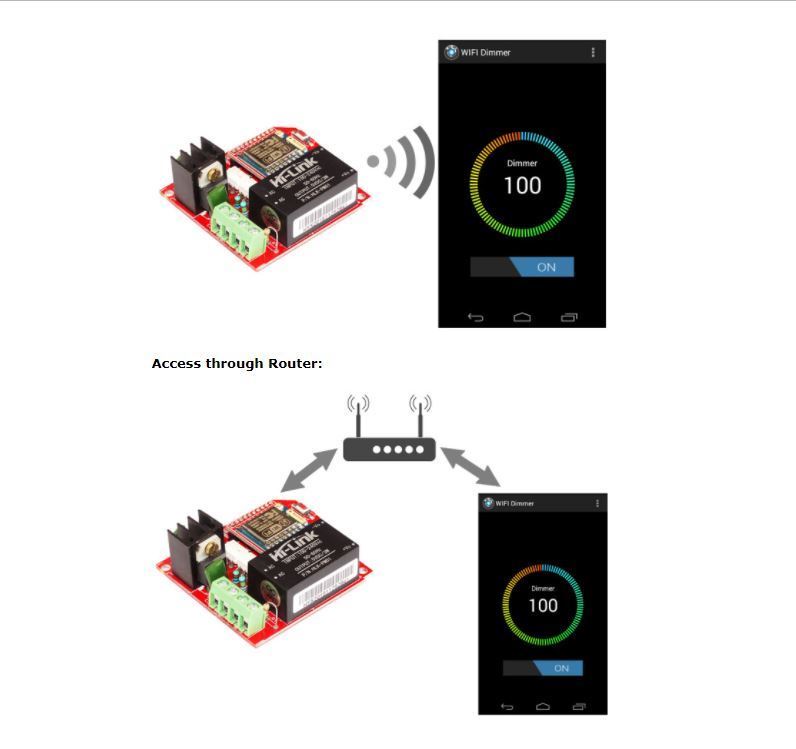

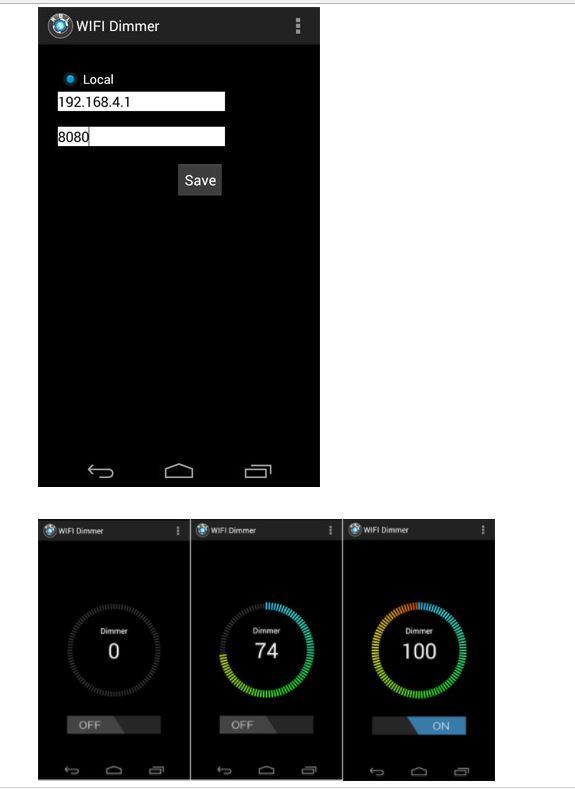

The WiFi SSR switch ON / OFF and Dimming can be controlled from remotely using android app or supporting wifi enabled devices .This switch can be used control light , FAN, power socket , Triac dimming enabled LED's and any other remote ON / OFF or dimming application.

Features:

On/Off and dimming control.
Snubber circuit enable.
Accurate firing angle control and smooth dimming.
Operating Voltage 5V DC.
Isolated power section from the input.
0-100% dimming.
WiFi Enabled.
Inbuilt Power supply.
Typical Power handling upto 1800Watts.
Maximum power handling 2760Watts *.
High quality PCB FR4 Grade with FPT Certified.
* By changing the 12A withstanding screw connector at your end
ESP8266 ESP-07 Features:
SDIO 2.0, SPI, UART
32-pin QFN package
Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
Integrated RISC processor, on-chip memory and external memory interfaces
Integrated MAC/baseband processors
Quality of Service management
I2S interface for high fidelity audio applications
On-chip low-dropout linear regulators for all internal supplies
Proprietary spurious-free clock generation architecture
Integrated WEP, TKIP, AES, and WAPI engines.
ESP8266 ESP-07 Specifications:
802.11 b/g/n
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLLs, regulators, DCXO and power management units
+19.5dBm output power in 802.11b mode
Power down leakage current of <10uA
Integrated low power 32-bit CPU could be used as application processor
SDIO 1.1/2.0, SPI, UART
STBC, 1×1 MIMO, 2×1 MIMO
A-MPDU & A-MSDU aggregation & 0.4ms guard interval
Wake up and transmit packets in < 2ms
Standby power consumption of < 1.0mW (DTIM3).
BTA12 Triac Features:
Blocking Voltage to 800 V
On-State Current Rating of 12 A RMS at 25°C
Uniform Gate Trigger Currents in Three Quadrants
High Immunity to dV/dt − 1500 V/s minimum at 125°C
Minimizes Snubber Networks for Protection
Industry Standard TO-220AB Package
High Commutating dI/dt − 1.5 A/ms minimum at 125°C
Internally Isolated (2500 VRMS)
These Devices are Pb−Free and are RoHS Compliant*
AC-DC Isolated Power Supply Module:
Ultra thin,ultra small.
All voltage input (AC:90~264V).
Low ripple and low noise.
Output overload and short circuit protection.
High efficiency, high power density.
The product is designed to meet the requirements of EMC and safety test.
Low power consumption,environmental protection, no load loss>0.1W.
Dimension: 34X20mm.

Full Documnatation https://drive.google.com/open?id=1DlLi2tiq8mL5dv5isM7SkLvkOIrphBUt
