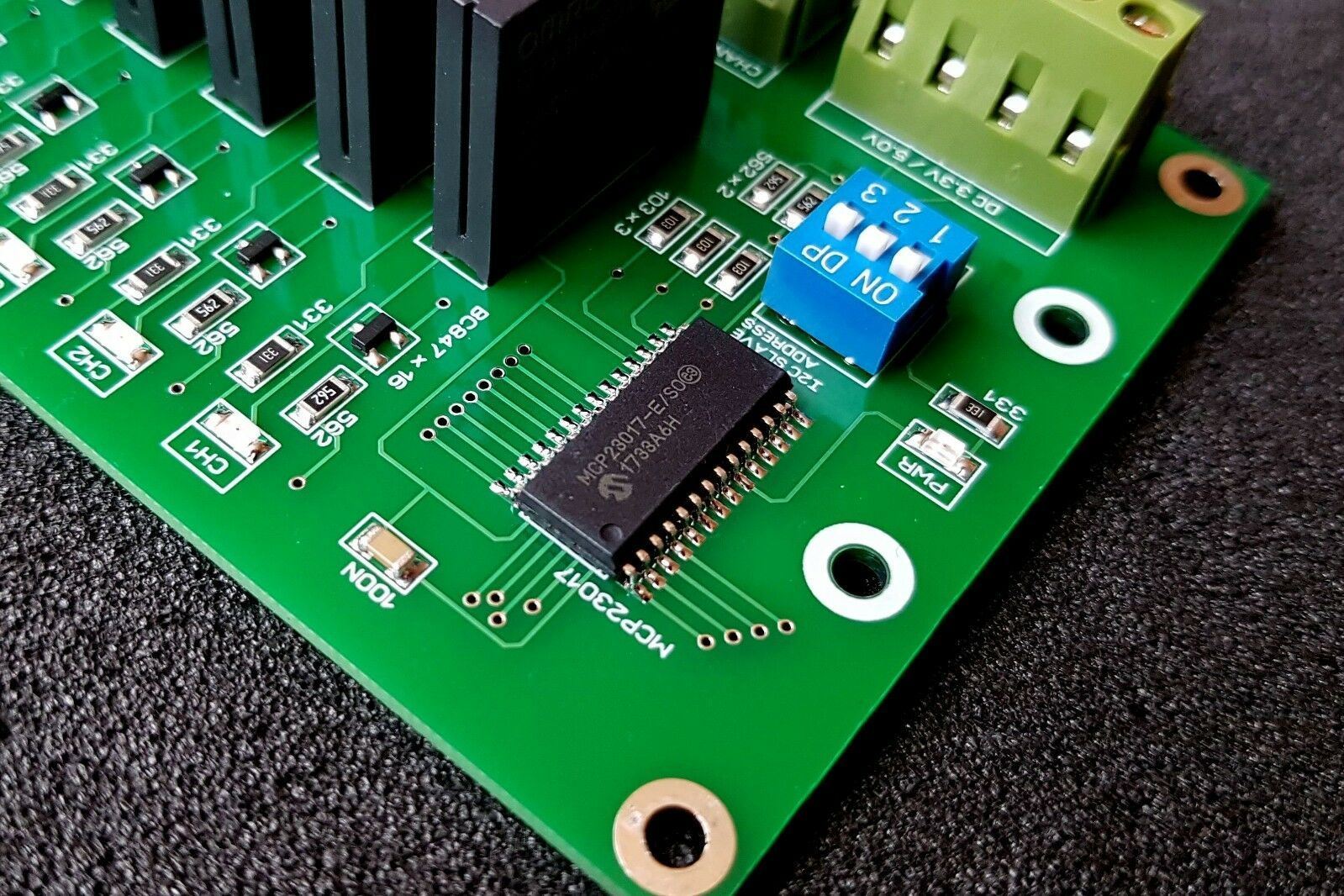

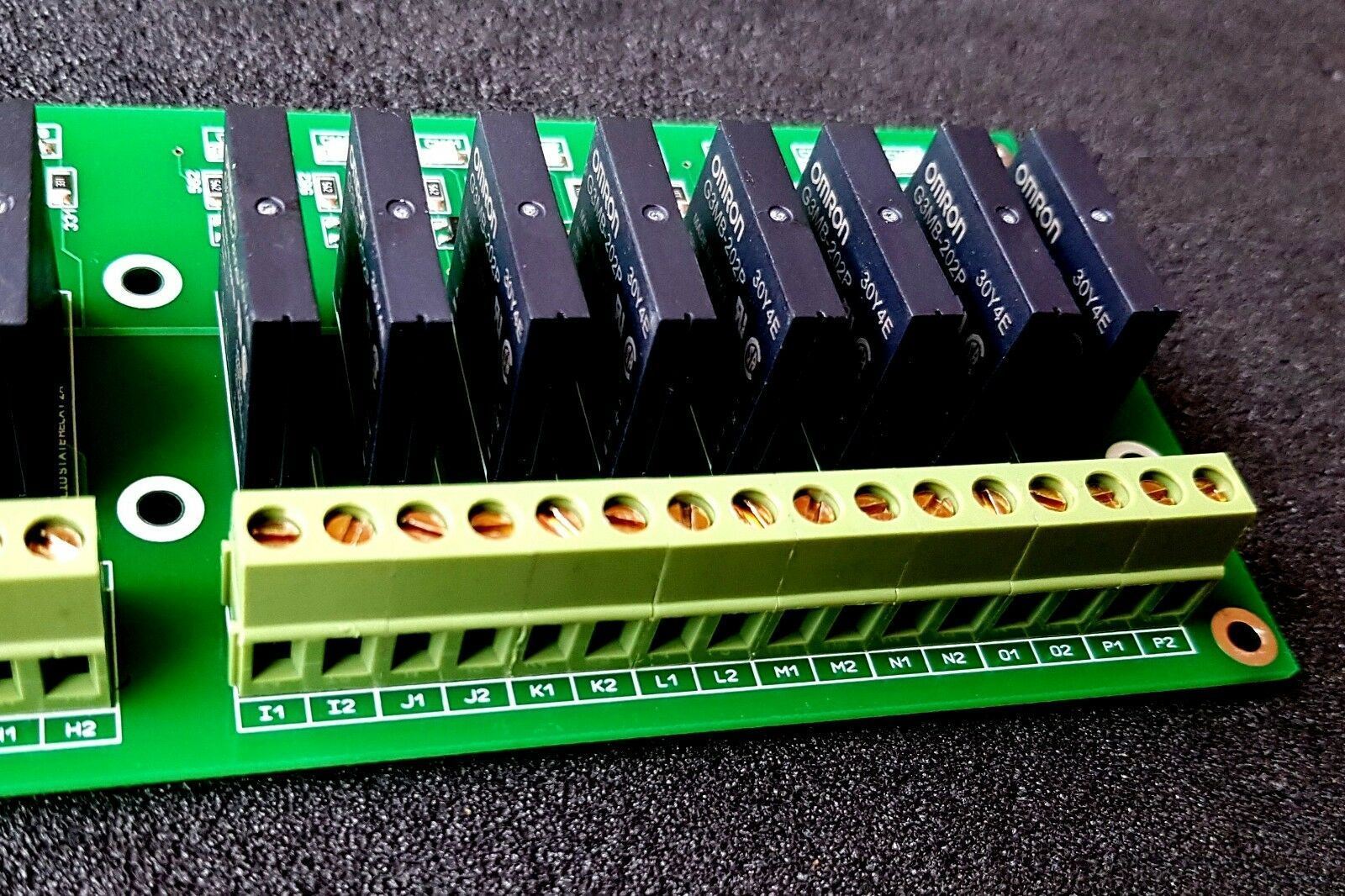

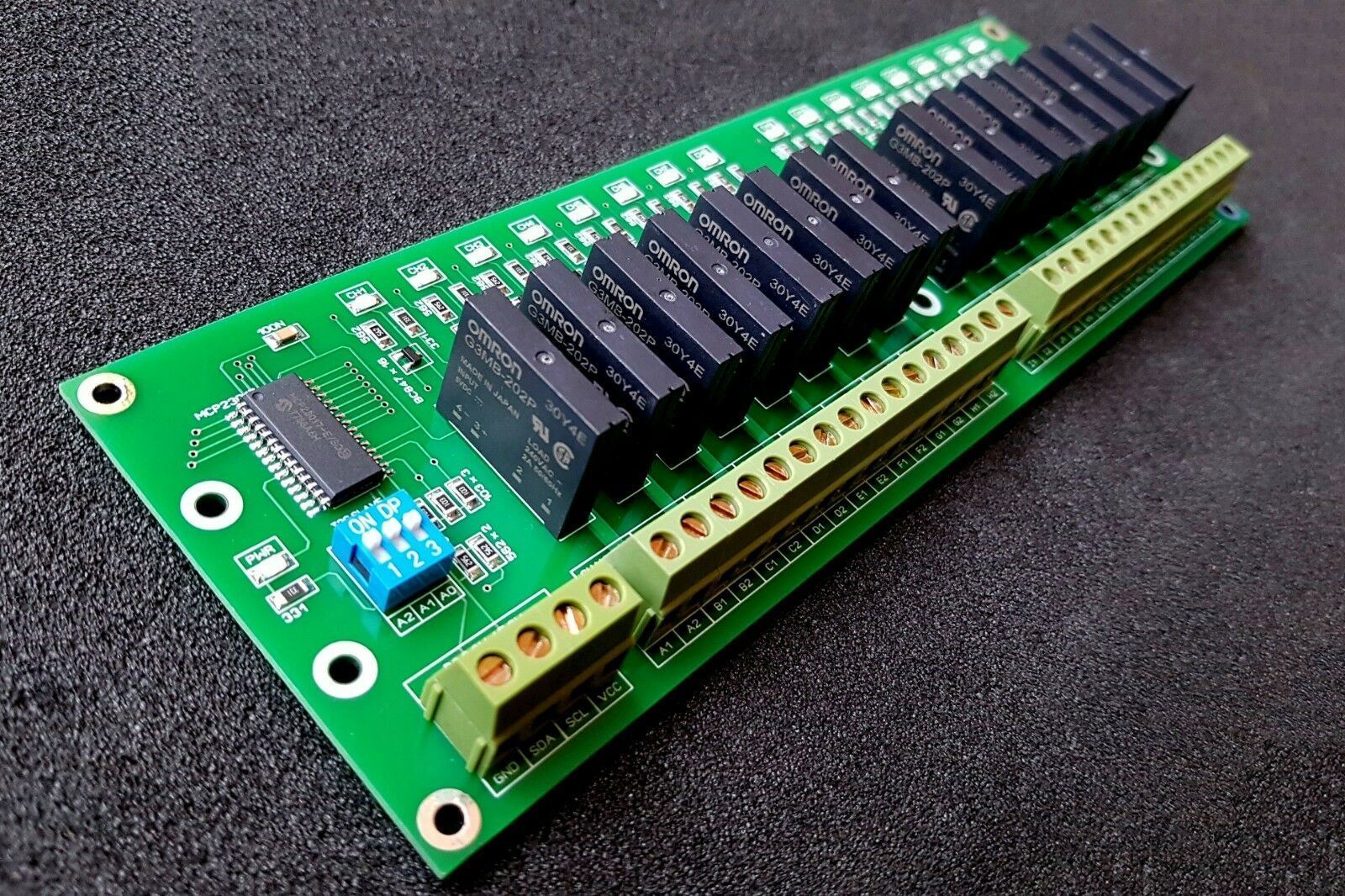

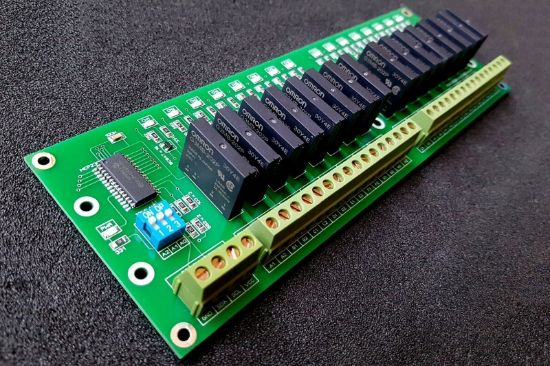

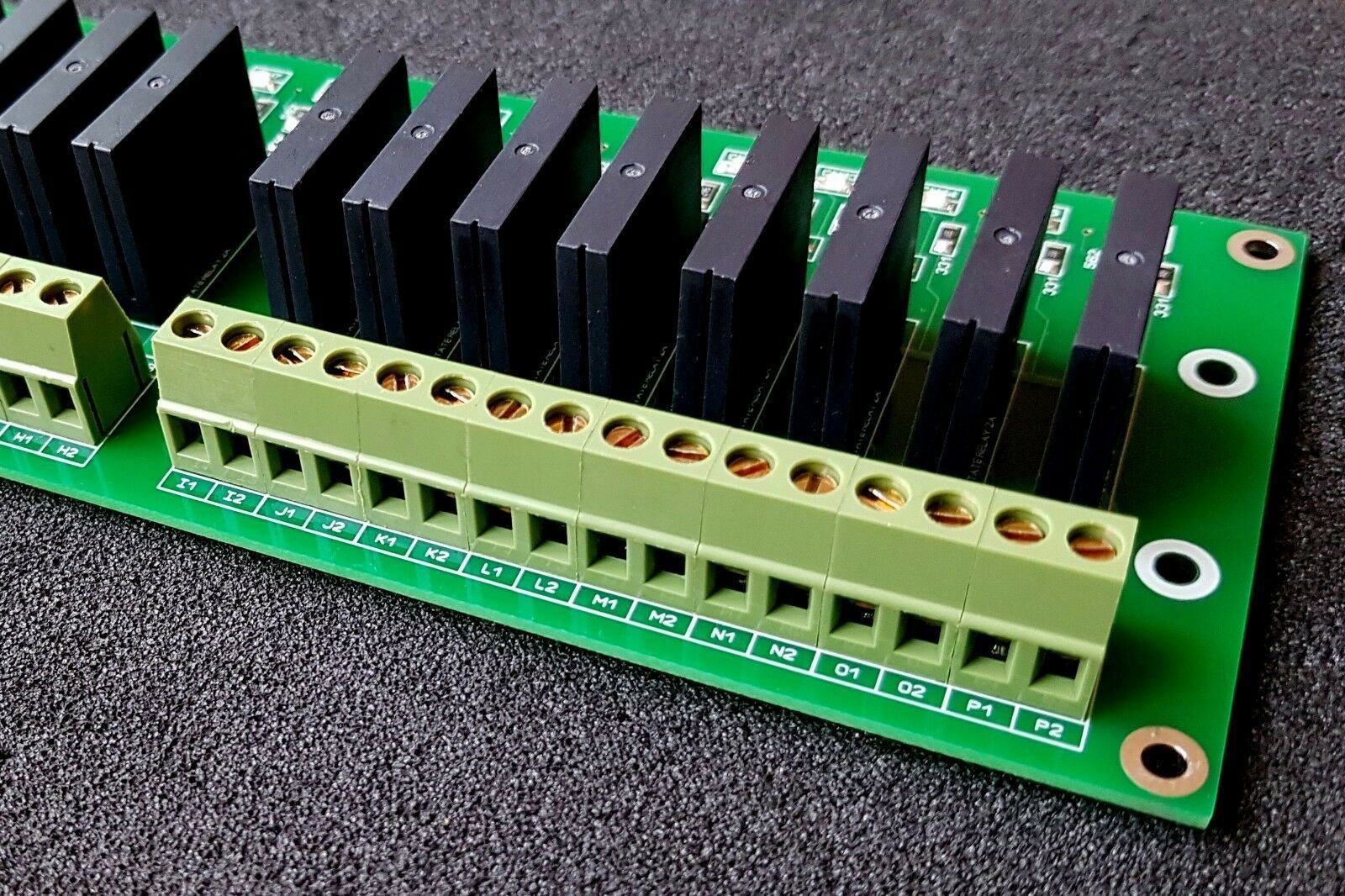

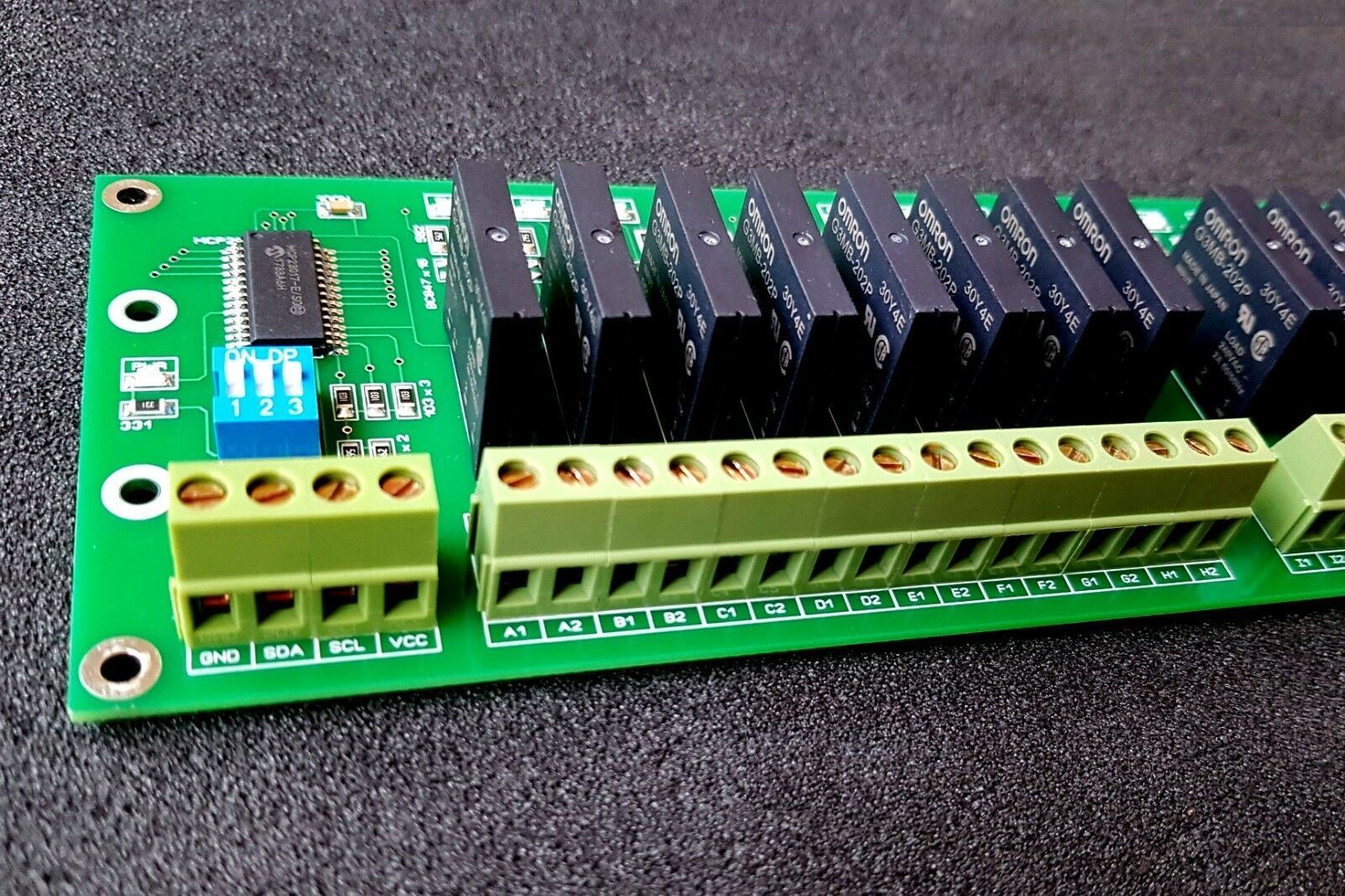

16 Channel I2C Solid State Relay Module for Arduino, Raspberry or any other microcontroller I2C expander MCP23017
Device specification:
- PCB board dimension 216mm x 72mm
- Compatible with DIN rail plastic holder
- Full optoisolation from high voltage
- Operation DC voltage – 3.3V and 5.0V
- Maximum current @5.0V – 450mA
- AC controlling voltage range 100…240VAC
- AC voltage frequency range 50…60Hz
- Minimum AC current per channel – 30mA
- Maximum AC current per channel – 2A

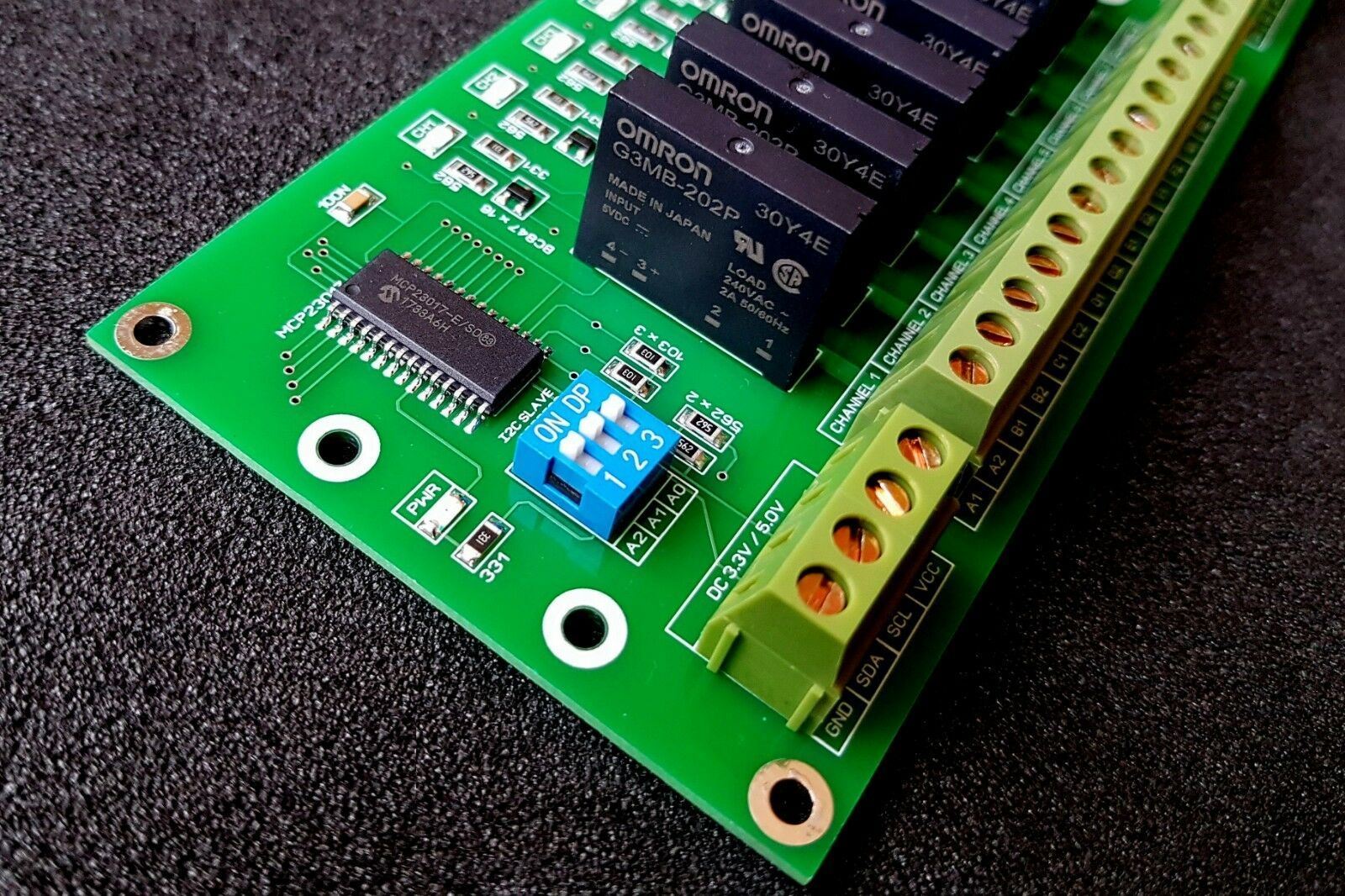

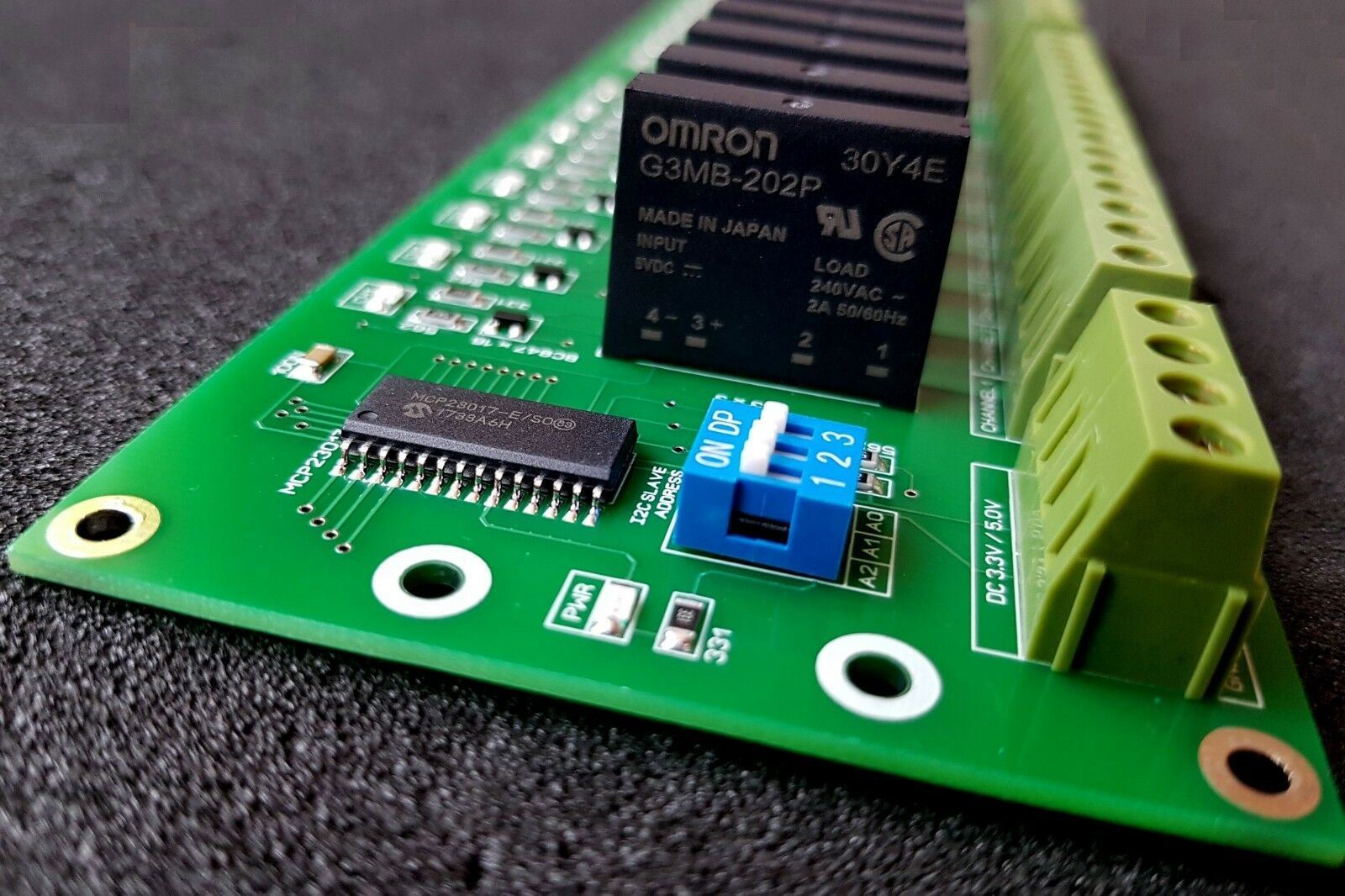

- Changeable I2C device slave address
- Can be connected up to 8 devices to the one i2c line bus,
- That mean can be controlled up to 128 channels

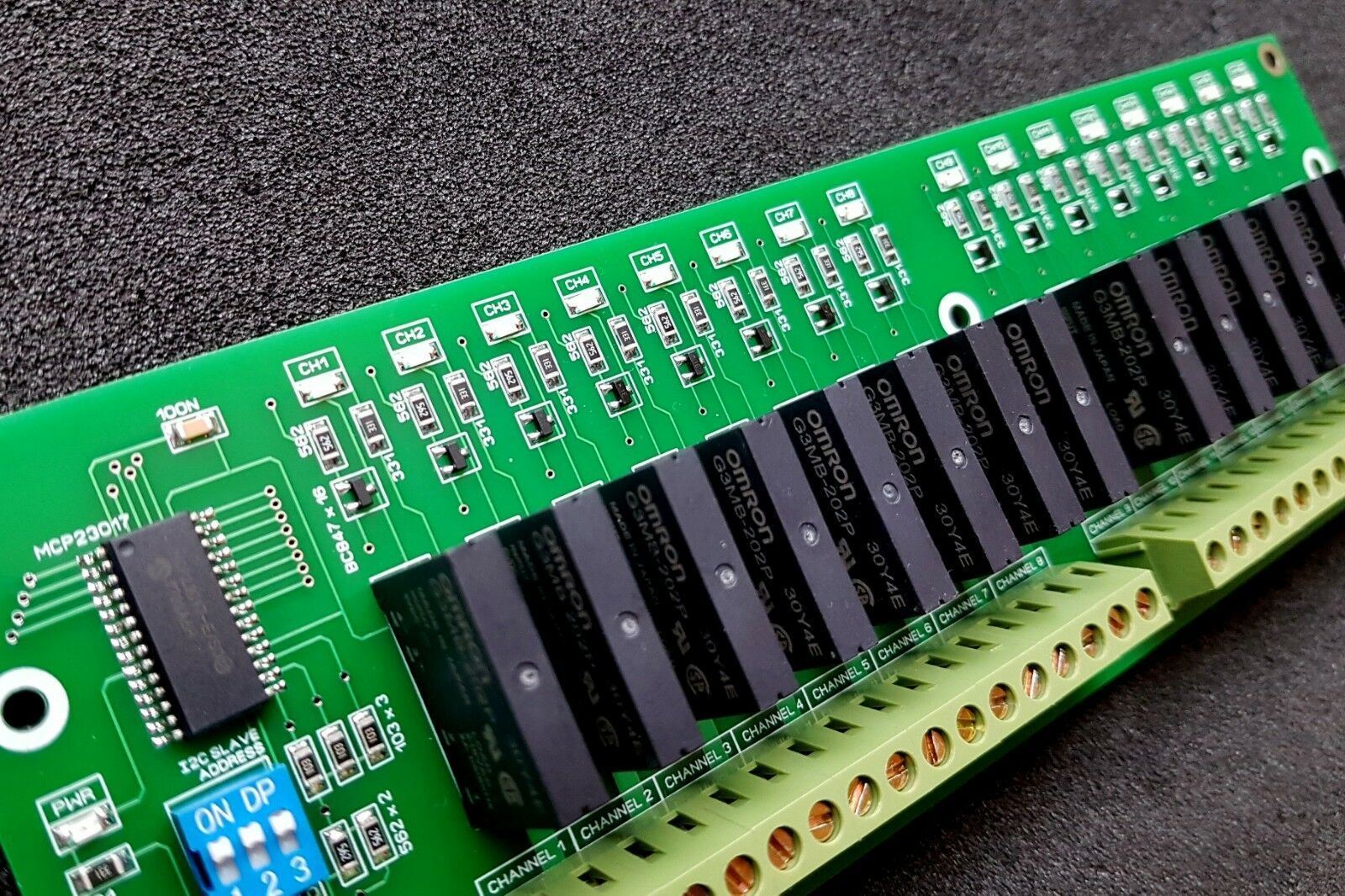

- LEDs indicators for each SSR relay channel, color RED
Arduino test code, slave address 0x20, *ino - https://drive.google.com/open?id=1hSQ0qnwr9CQScdOnAgepRvtB2x0YD53e
Arduino test code, slave address 0x20, *txt - https://drive.google.com/open?id=1mq5QLKvMfO1GikzwVlDkKsNGotS9rHnl
!!! Arduino code, each channel separately, *ino - https://drive.google.com/open?id=1UElLwhJ0UYpx-tb3iQ8gAYBxbGvaV-P3
!!! Arduino code, each channel separately, *txt - https://drive.google.com/open?id=1gxKadbssngYT_8Hpose37mX3r1GvEckt
Device in action, without loads - watch Youtube video
