Raspberry Pi Compute Module 3 Development Kit Type A Include CM3 IO Board DS18B20 and IR Remote Controller the Pi in a flexible form factor with 4GB eMMC Flash

Raspberry Pi Compute Module 3 Development Kit Type A, CM3 IO Board, DS18B20, IR Remote Controller
Overview
Since the Raspberry Pi Foundation released the Compute Module 3, you may have been watching it for some time, don't know how to get started. Now it's time to get moving. We prepare this development kit for you to evaluate the Compute Module 3 quickly, reducing your development cycle.

The key parts in this Compute Module 3 development kit includes:

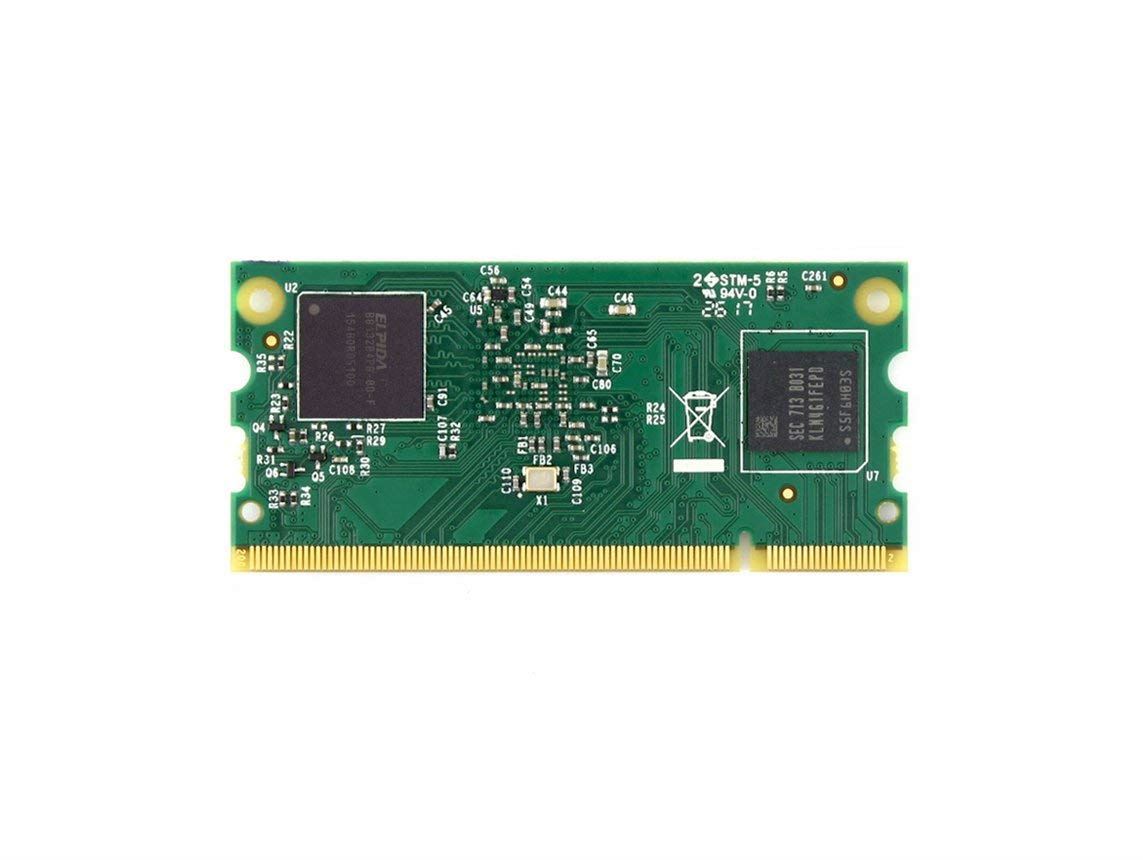

Compute Module 3: Raspberry Pi 3 industrial version, the Pi in a flexible form factor, with 4GB eMMC Flash
Compute Module IO Board Plus: Extend kinds of interfaces from CM3, such as USB, HDMI, just like the regular Pi, to help evaluating

Compared to CM1, the CM3/CM3L supports more OS, like Windows 10 (the free IOT-specific version from Microsoft)
Compute Module IO Board Plus Features
Compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation
Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs
Arduino connectivity, also supports Arduino shields
1-WIRE interface, for connecting single-bus devices like DS18B20
4x keys, 4x LEDs, 1x Buzzer, for I/O testing
Onboard USB HUB, allows connecting more USB devices
IR receiver, IR remote control is available
Onboard USB TO UART, for serial debugging
Sensor interface
10-bit ADC, 38KSPS, 11-ch (6-ch for Arduino interface, 5-ch for sensors)
16-bit DAC, 2-ch
Onboard RTC, one of the most common and useful functions

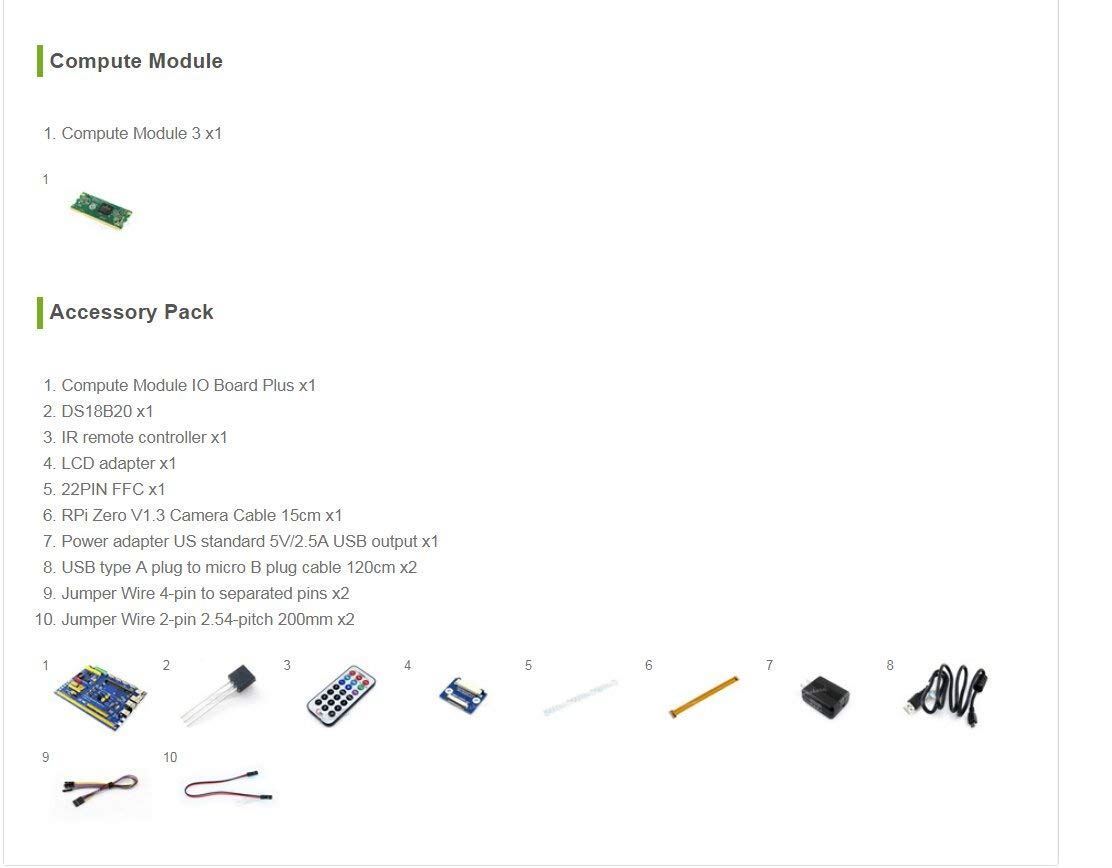

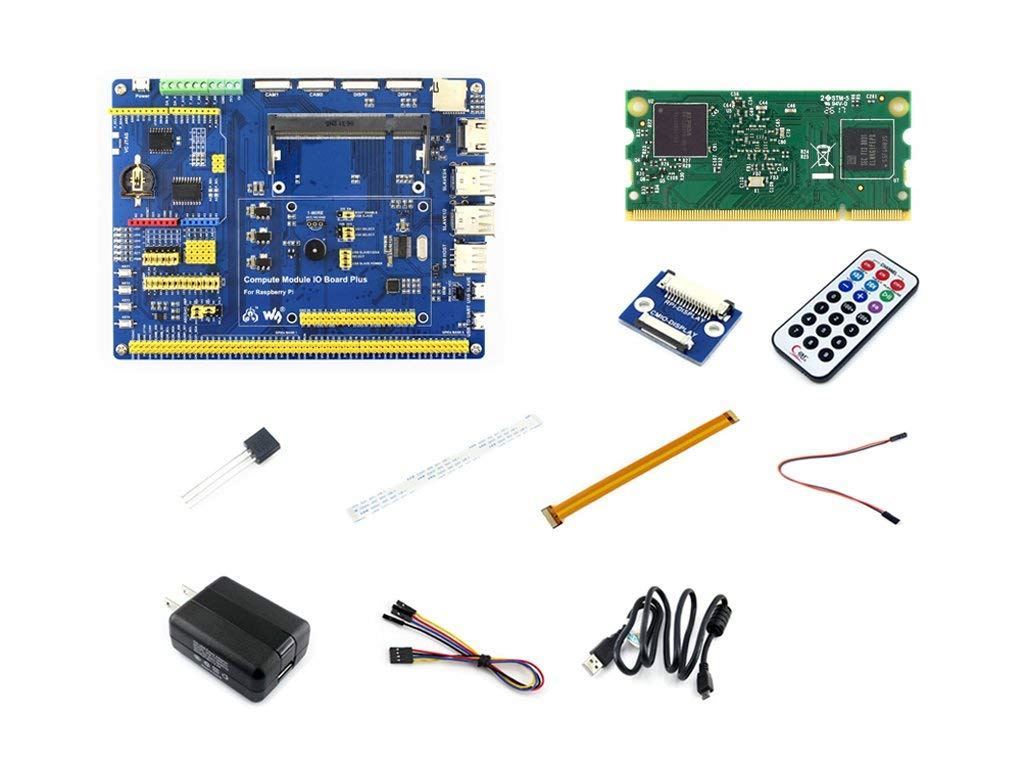

PACKAGE CONTENT

Compute Module 3 x1
Compute Module IO Board Plus x1
DS18B20 x1

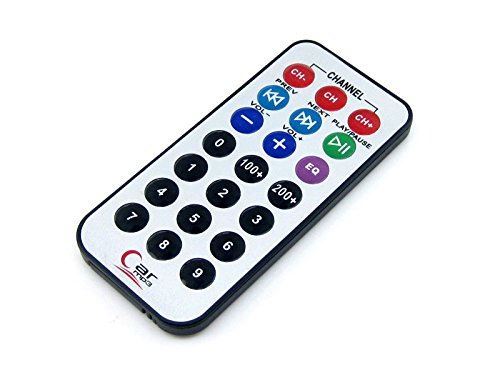

IR remote controller x1
LCD adapter x1

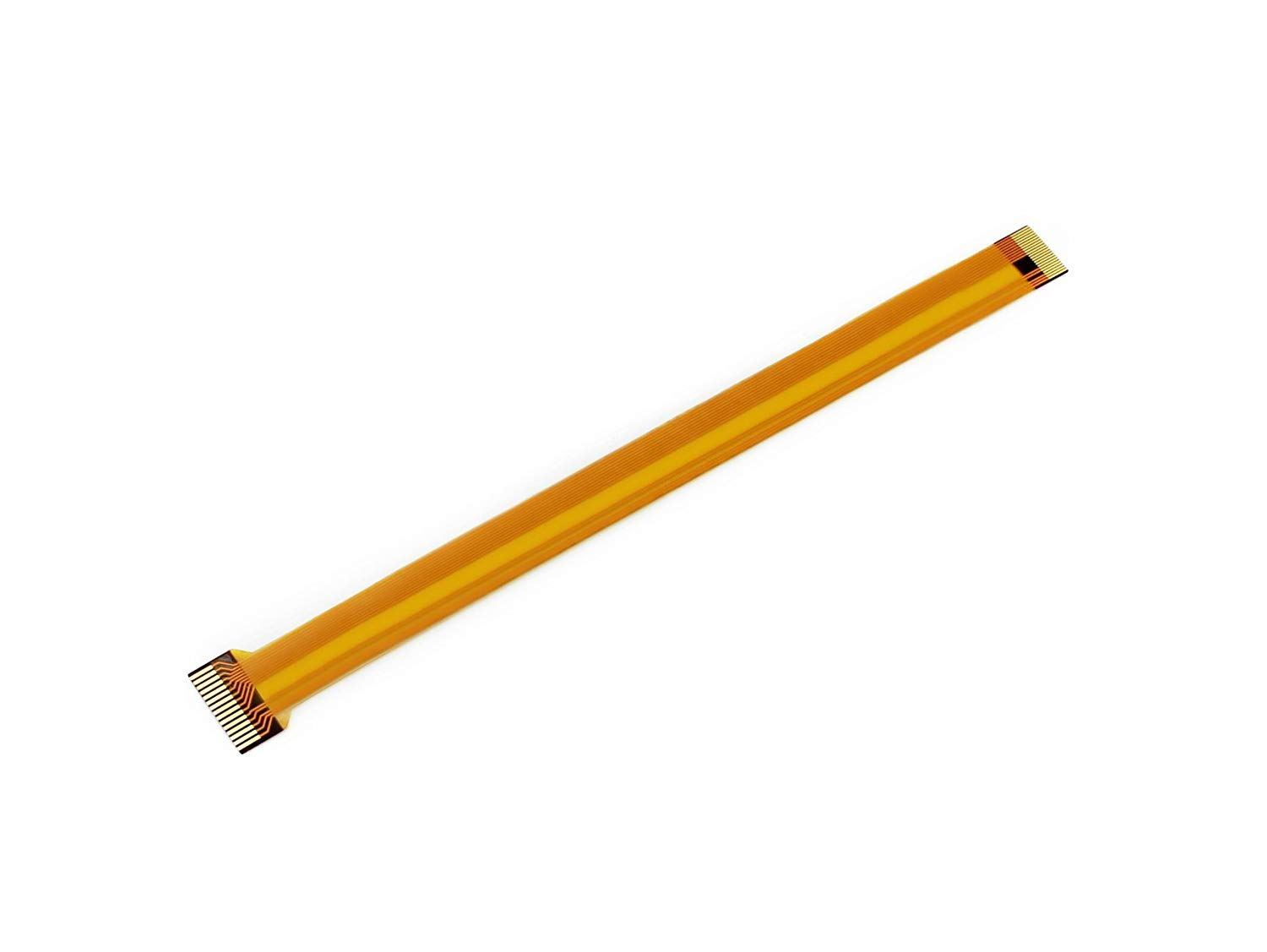

22PIN FFC x1
RPi Zero V1.3 Camera Cable 15cm x1
Power adapter US standard 5V/2.5A USB output x1
USB type A plug to micro B plug cable 120cm x2

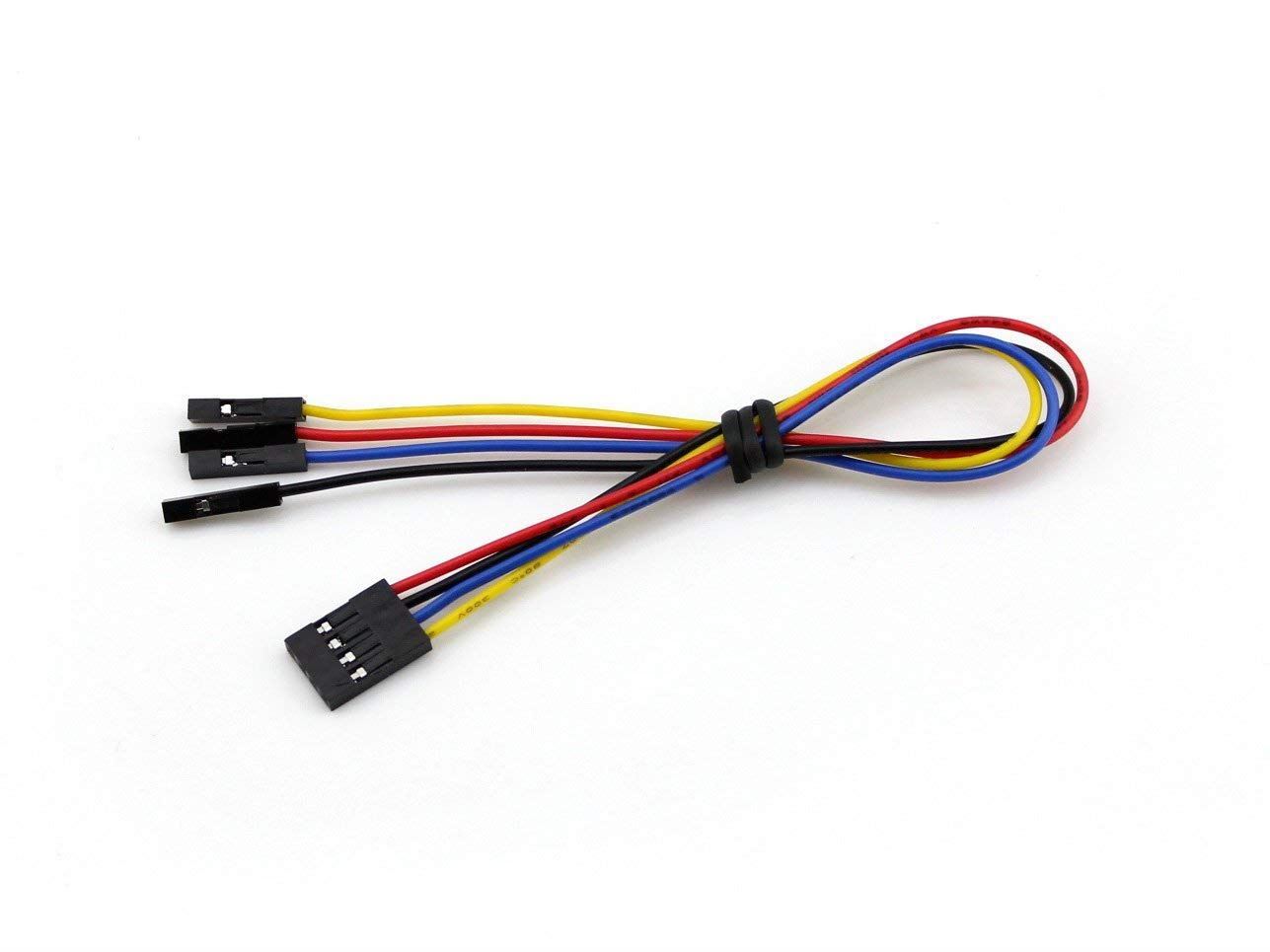

Jumper Wire 4-pin to separated pins x2
Jumper Wire 2-pin 2.54-pitch 200mm x2
