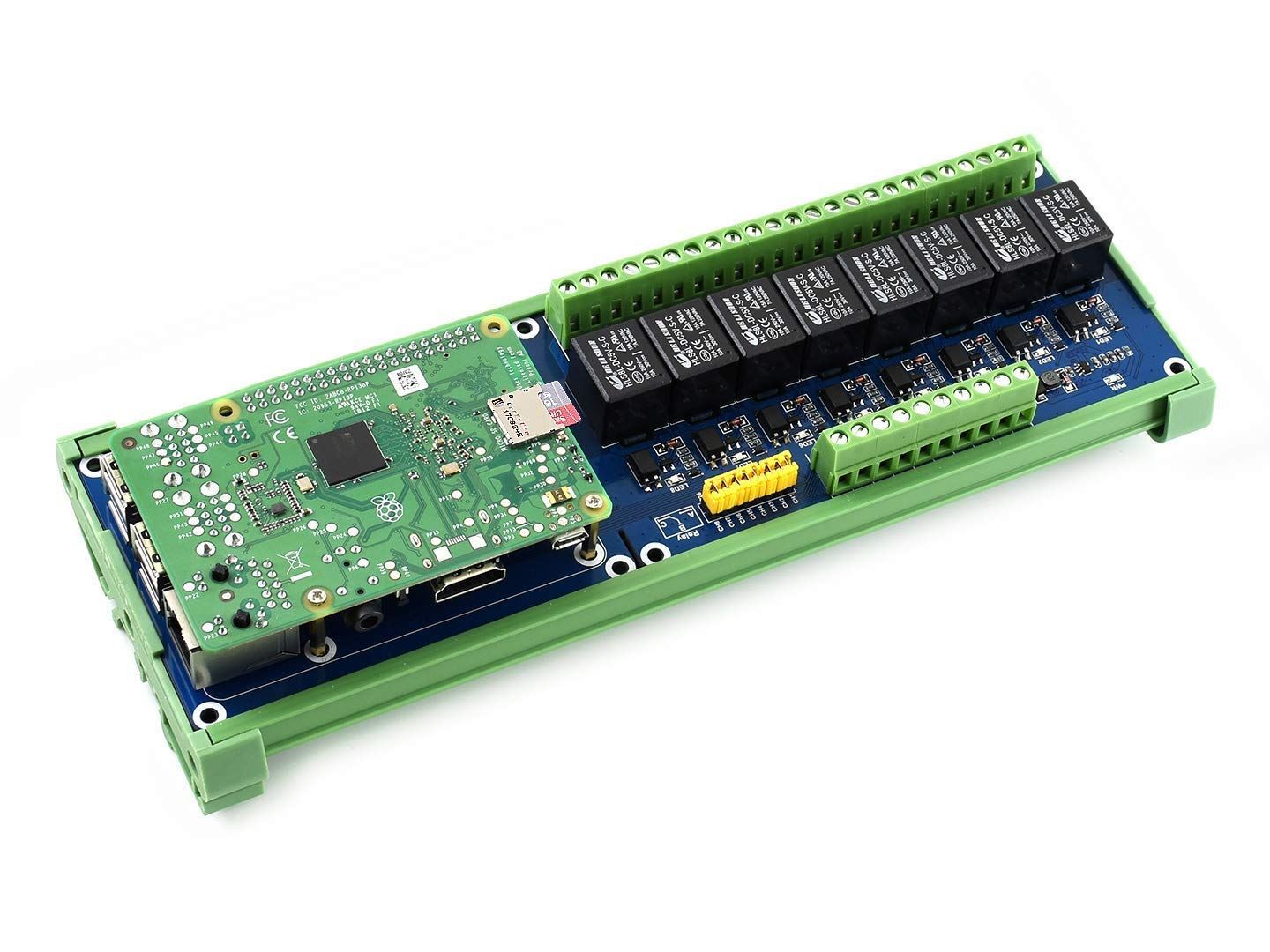

Waveshare Raspberry Pi Expansion Board 8 Channel Relay Expansion Board 5V Power Supply Supports Raspberry Pi A+/B+/2B/3B/3B+ Control High Voltage Home Appliances

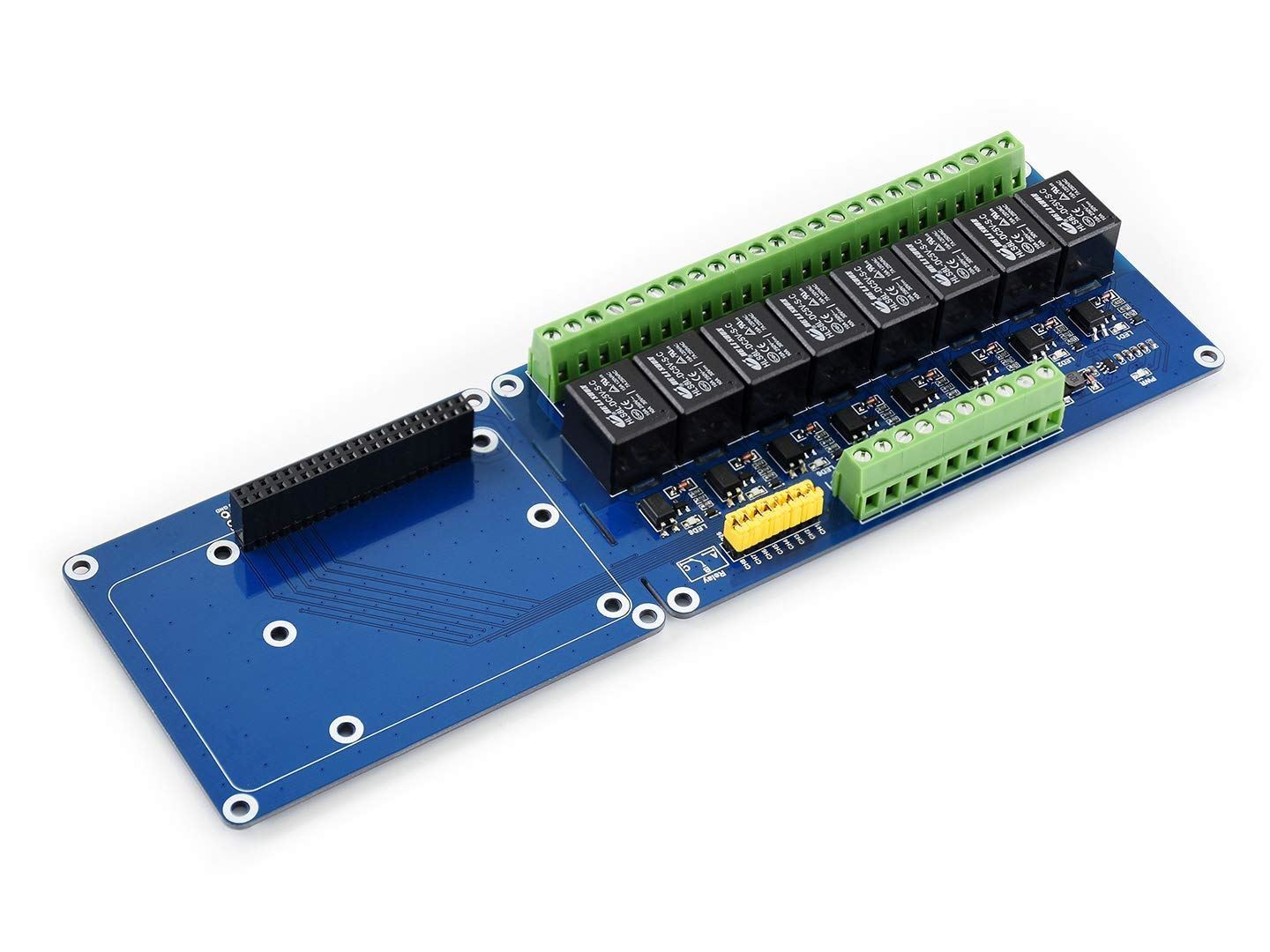

The RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi. It gives your Pi the ability to control high voltage products such as home appliances.
Old price: $49.99
$34.99
PRICE BREAKS - The more you buy, the more you save
Quantity 3+ 10+
Price $33.99 $29.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Raspberry Pi Expansion Board, 8-ch Relays
Overview
The RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi. It gives your Pi the ability to control high voltage products such as home appliances.

Features
Supports Raspberry Pi A+/B+/2B/3B/3B+
High quality relays, loads up to 5A 250V AC or 5A 30V DC
Photo coupling isolation, prevent interference from high voltage circuit

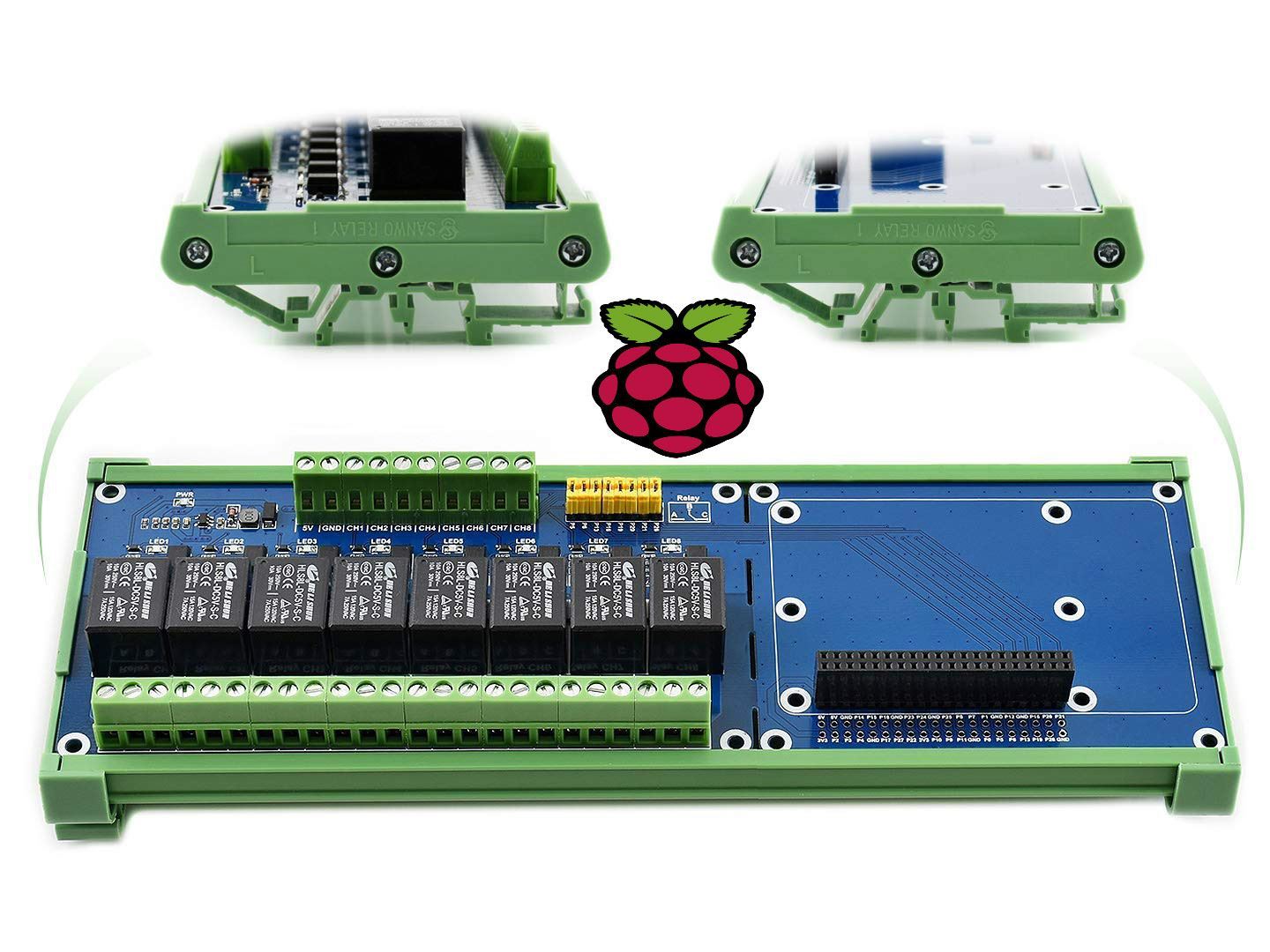

Standard rail mount bottom case
Onboard LEDs for indicating relays status
Relay control pin selection jumper, allows to control the relays by custom pins other than the default pins
Reserved control Interface, allows to work with controllers like PLC
Comes with development resources, including examples in wiringPi, bcm2835, python, python-bottle (webpage control), and crontab (cron job)
Specifications
Power supply voltage: 5V
Trigger signal: 3.3V/5V
Relay channels: 8-ch
Contact form: SPDT-NO,NC
Closed current: 6mA (per channel)
Connector: screw terminal block
Dimension: 232 × 72 (mm)
Mounting hole size: 3.0mm
Dimensions
RPi Relay Board (B) dimensions
Development Resources
https://www.waveshare.com/wiki/RPi_Relay_Board_(B)

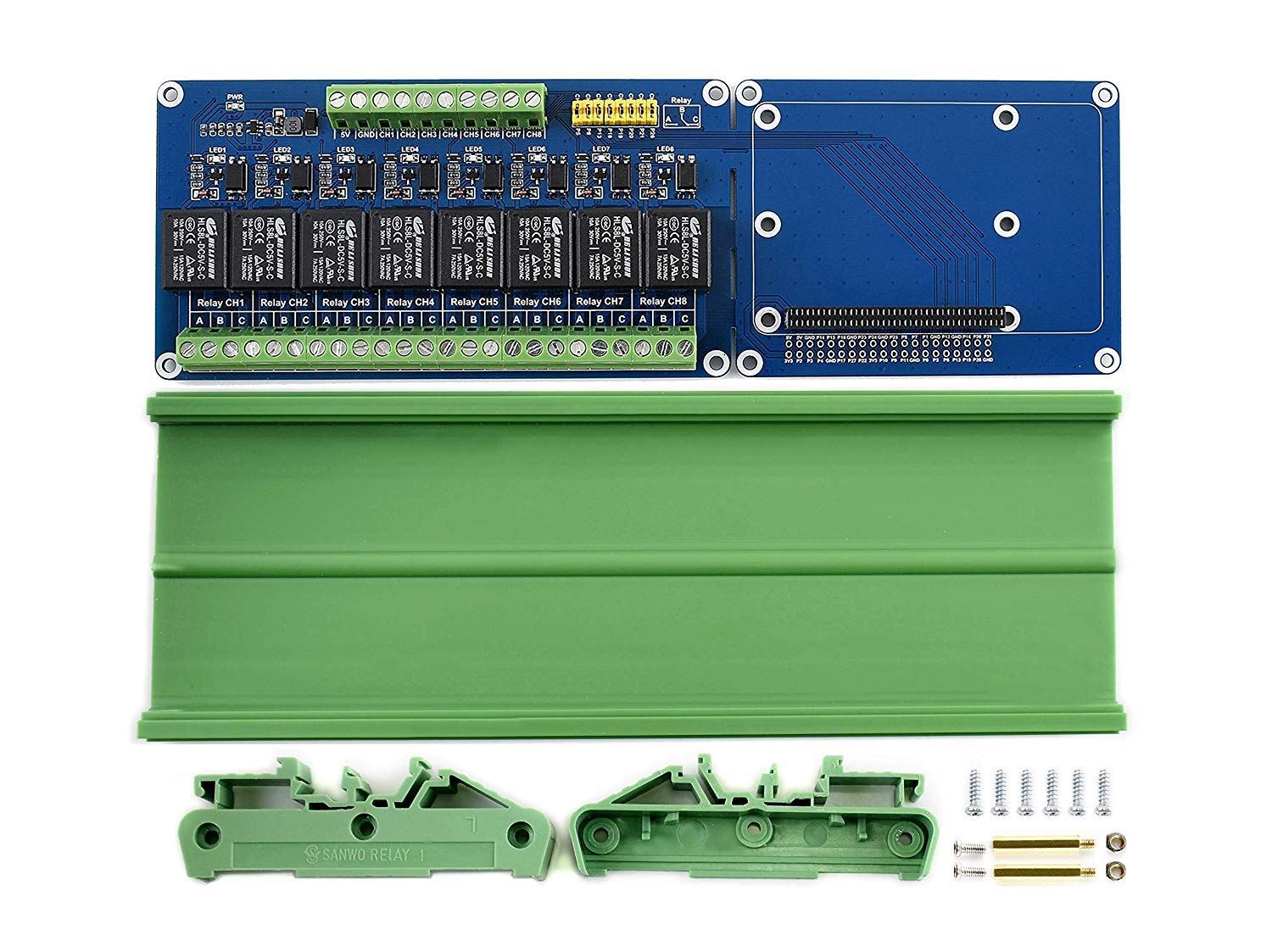

Package Include
Weight: 0.275 kg

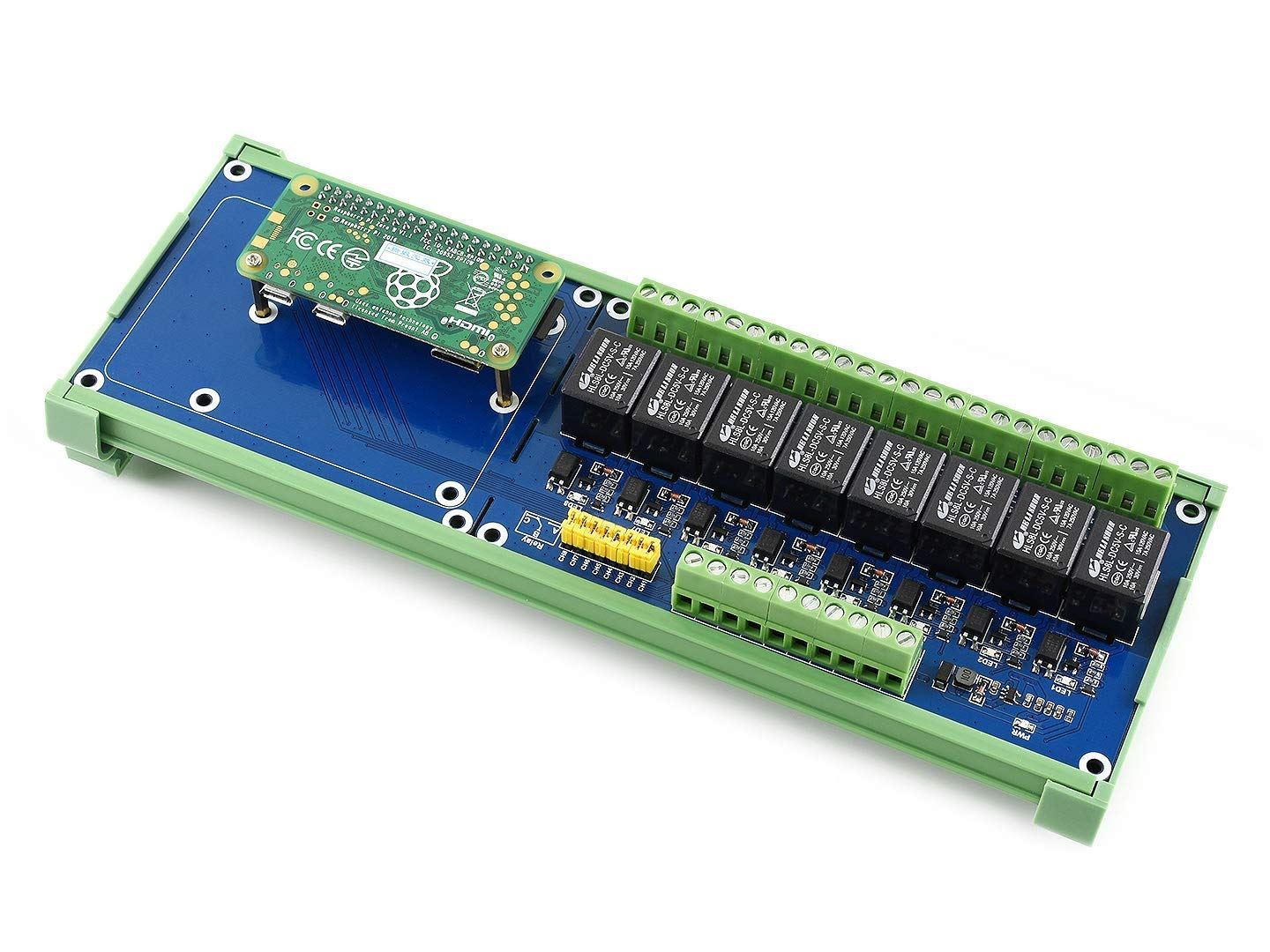

Note: Raspberry Pi in the photos is NOT included.

RPi Relay Board (B) x1
Rail mount bottom case x1
Screws pack x1
